Melana Slim-8892
Melana Slim-8892
Melana Slim-8892-2
Melana Slim-8892-3

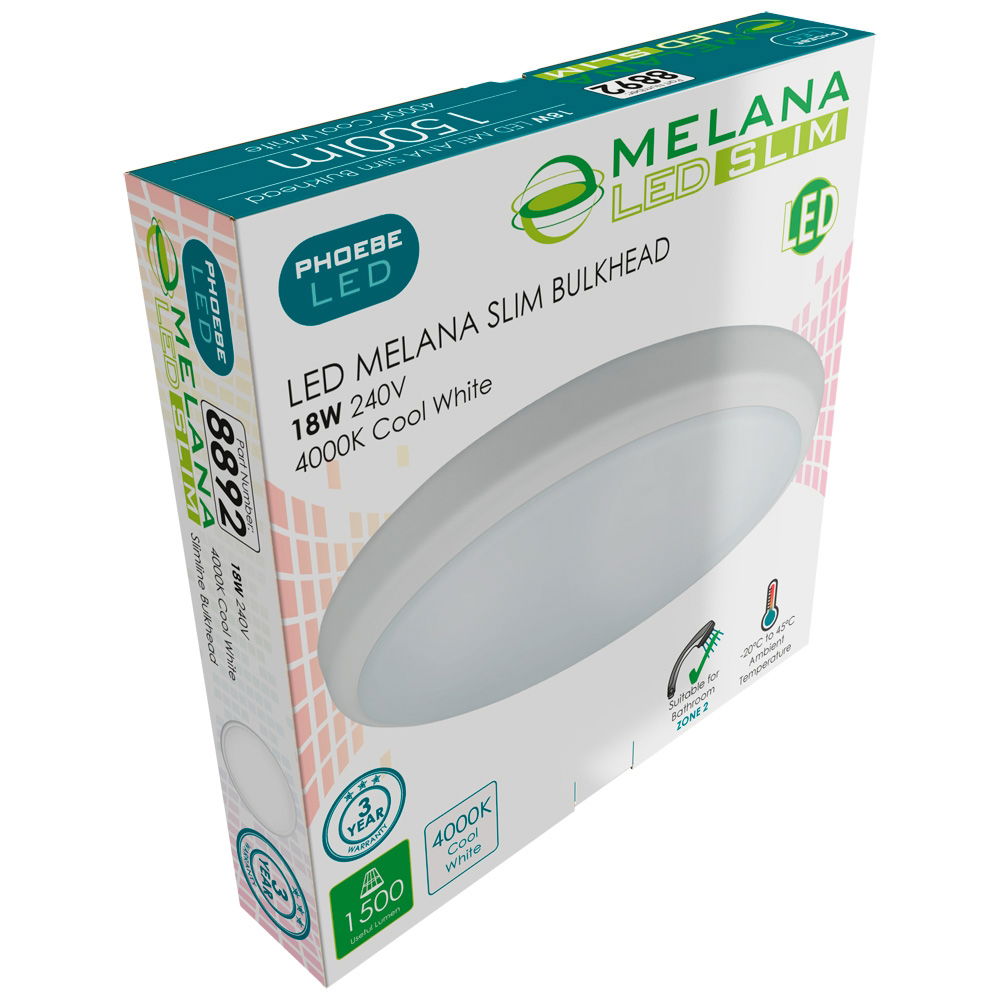

Melana Slim-8892-product-net
LED-Melana-Slim-logo

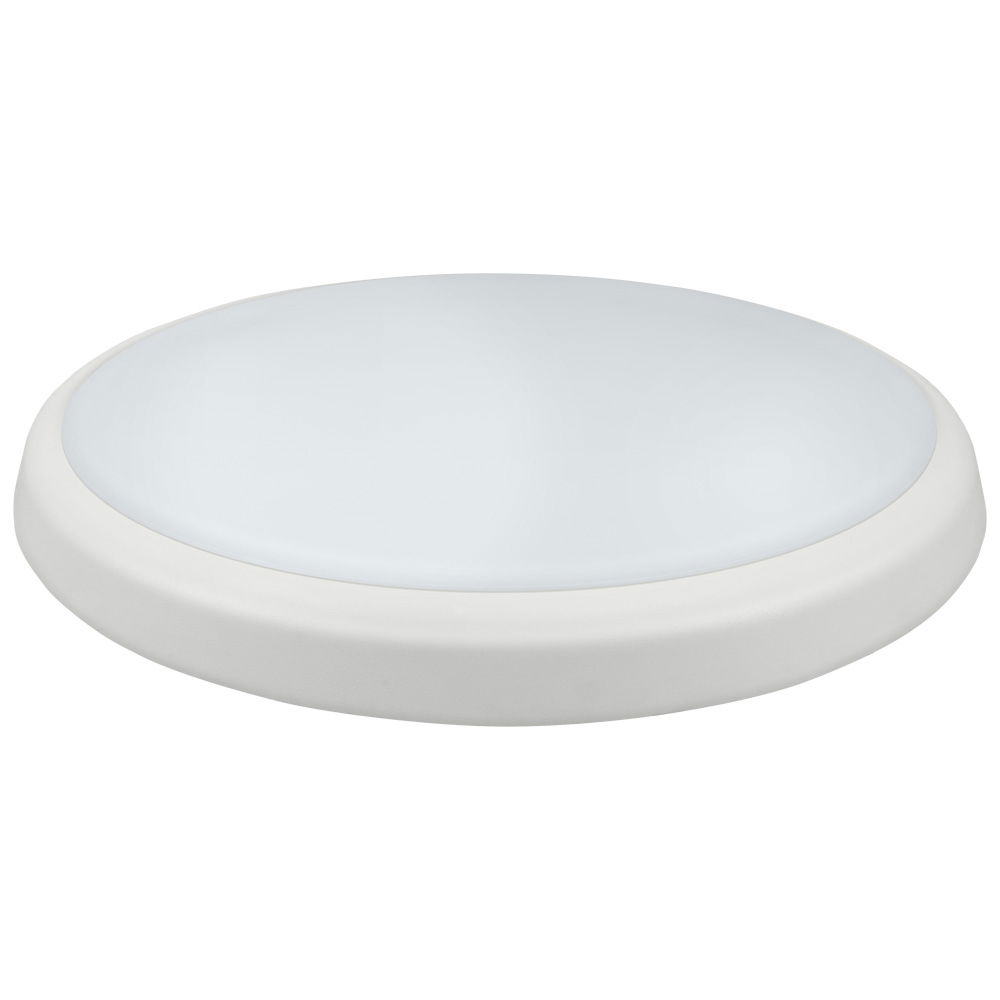

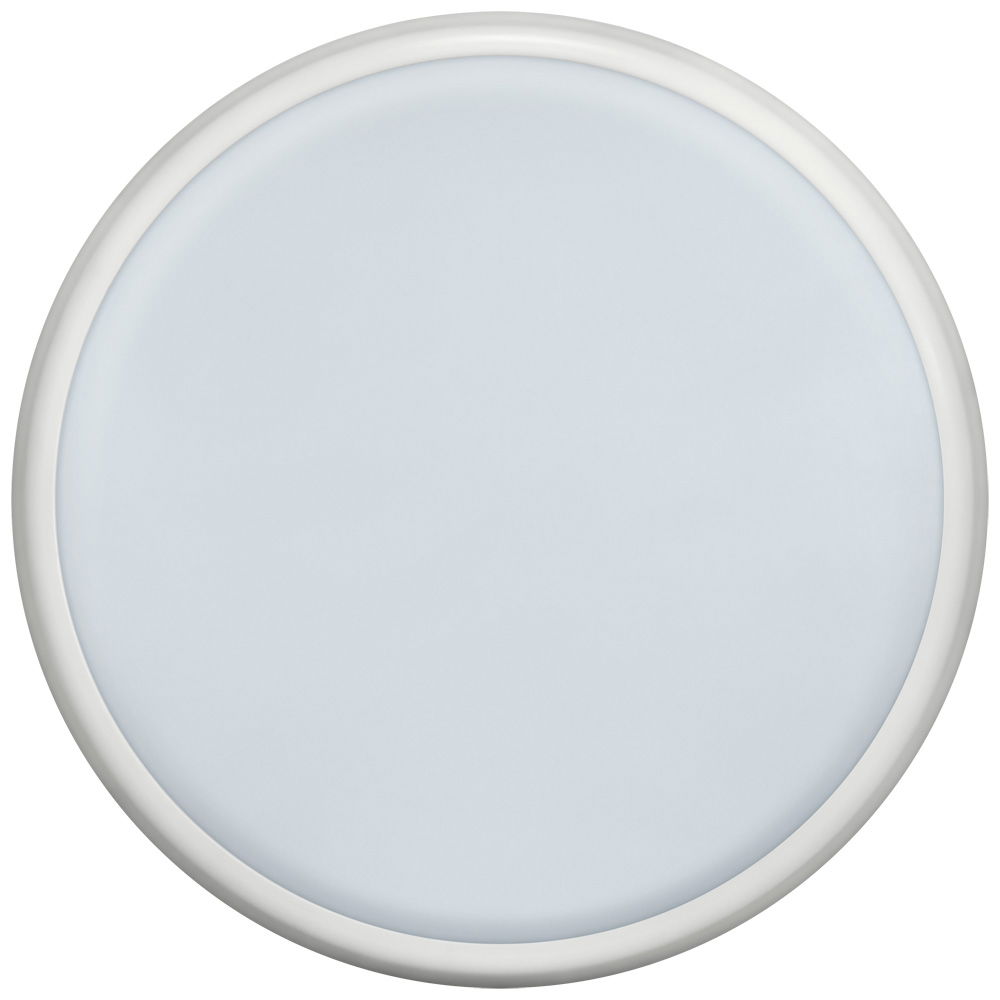

Discontinued - Melana Slim Bulkhead • 18W • 4000K

Discontinued Product - See below for replacement product

Energy efficient IP54 rated LED round bulkhead suitable for surface mounting.

Features a 40mm slim profile and a 4000K cool white colour temperature.

Constructed from tough corrosion resistant plastic with a white finish with opal diffuser.

Ideal for wall or ceiling mounting.

Suitable for corridors, rest-rooms, stairwell, store rooms etc.

Dimensions: Diameter Ø 300mm - Height 40mm.
IP54 Rated: Suitable for use in Bathrooms Zones 1-2.

Stock Code: 8892

Energy efficient IP54 rated LED round bulkhead suitable for surface mounting.

Features a 40mm slim profile and a 4000K cool white colour temperature.

Constructed from tough corrosion resistant plastic with a white finish with opal diffuser.

Ideal for wall or ceiling mounting.

Suitable for corridors, rest-rooms, stairwell, store rooms etc.

  • 40,000 hour life
  • 20,000 switching cycles
  • 120° beam angle
  • 4000K cool white colour temperature
  • Colour rendering index ≥80
  • Not suitable for dimming
  • IP54 rated for use in bathroom zones 1 and 2
  • For indoor use only
  • Instant full light
  • 5 year warranty
Dimensions: Diameter Ø 300mm - Height 40mm.
IP54 Rated: Suitable for use in Bathrooms Zones 1-2.

Part Code:

8892

Product Name:

Melana Slim LED Round Bulkhead 18W

Notes:

IP54 rated - suitable for bathrooms zone 2.

Nominal Voltage:

240V

Nominal Wattage:

18W

Nominal Luminous Flux:

1500lm

Nominal Beam Angle:

120°

Nominal Life:

40,000 hours

Dimmable:

Not suitable for dimming

Energy Saving:

Yes

Energy Efficiency Class:

This luminaire contains built-in LED lamps (A++, A+ or A). The lamps cannot be changed in this luminaire.

Rated Wattage (0.1W Precision):

18.0W

Voltage:

240V

Operating Frequency:

50/60Hz

Power Factor λ:

>0.9

Operating Current:

85mA

Weighted Energy Consumption:

18W

Rated Beam Angle:

120°

Rated Useful Luminous Flux:

1500lm

Rated Total Luminous Flux:

1700lm

Colour Temperature:

4000K

Colour Name:

Cool White

Colour Rendering Index:

≥80

Colour Consistency SDCM:

≤6

ΔUV:

±0.003

Starting Time:

Instant full light

Warm Up Time (to 60% Light Output):

<0.5 seconds

Efficiency:

83lm/W

Rated Life:

40,000 hours

Switching Cycles:

20,000

Warranty:

5 years

Diameter:

300mm

Height:

40mm

Housing Material:

Corrosion Resistant Plastic

Ingress Protection Code:

IP54 Front / IP20 Back

Appliance Class:

II

Mercury (Hg) Content:

0.0mg

Ambient Operating Temperature:

-20°C to 30°C

EAN13 Barcode:

5055579308892

Outer Carton GS1-128 Barcode:

02050555793088923710

Outer Carton Quantity:

10

Name:
File Type:
Date Modified:
  A4 Flyer

Sep 26 2019
  A4 Flyer Editable

Sep 26 2019
  Installation Instructions

Jan 02 2019
  MELANA Slim-8892-18W-4000K

May 24 2019
  Specification Sheet

Sep 26 2019
