Crompton Lamps

Discontinued - CFL Triple Turn TE Type • 13W • 4000K • Gx24q-1 4-Pin

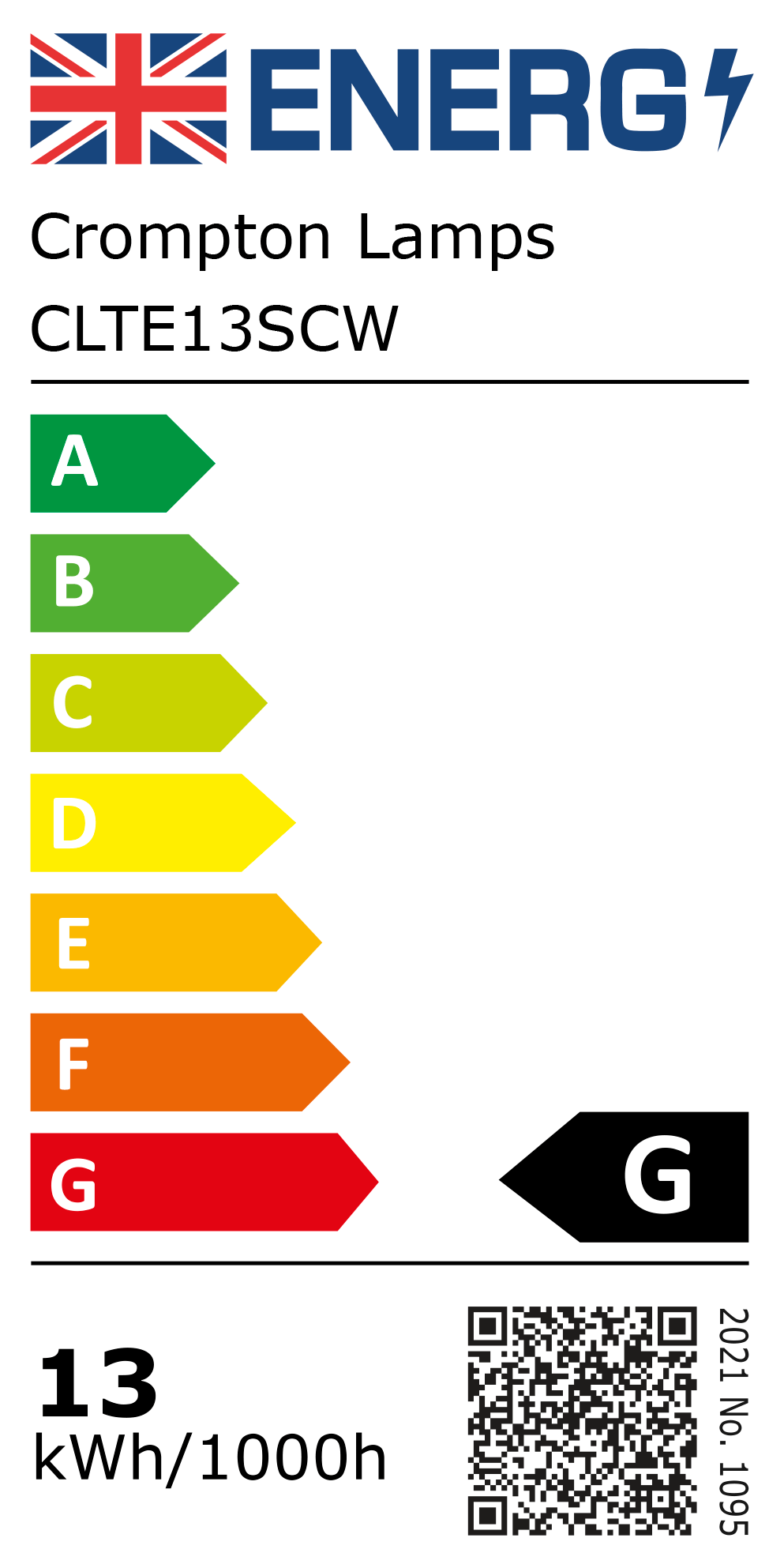

New 2021 Energy Rating: G

Energy Labelling Guide


Discontinued Product - No suitable replacement available


Compact fluorescent triple turn TE-Type lamp (PLT).

Commonly used in commercial luminaires. Ideal for use in commercial downlights, bulkheads, pendants and many other applications.

Spectra-Plus Triphosphor coated for excellent colour rendering, high output and long life.

Suitable for use in emergency luminaires.

Separate ballast/control gear required.

Stock Code: CLTE13SCW

Related Products

Compact fluorescent triple turn TE-Type lamp (PLT).

Commonly used in commercial luminaires. Ideal for use in commercial downlights, bulkheads, pendants and many other applications.

Spectra-Plus Triphosphor coated for excellent colour rendering, high output and long life.

Suitable for use in emergency luminaires.

Separate ballast/control gear required.

  • 10,000 hour life
  • 8,000 switching cycles
  • Gx24q-1 4-Pin cap
  • 4000K cool white colour temperature
  • Colour rendering index ≥85
  • Not suitable for dimming
  • Recommended for indoor use only
  • 2 year warranty

Part Code:

CLTE13SCW

Product Name:

CFL Triple Turn TE Type 13W 4000K Gx24q-1 4 Pin

Notes:

Suitable for use in emergency luminaires. Separate ballast/control gear required.

Nominal Wattage:

13W

Nominal Luminous Flux:

900lm

Nominal Life:

10,000 hours

Dimmable:

Not suitable for dimming

Cap Type:

Gx24q-1 4-Pin

Energy Saving:

No

Energy Efficiency Class:

New 2021 Energy Rating: G

Pre-2021: A

Rated Wattage (0.1W Precision):

13.0W

Power Factor λ:

>0.94

Weighted Energy Consumption:

15W

Rated Total Luminous Flux:

900lm

Colour Temperature:

4000K

Colour Name:

Cool White

Weighted Energy Consumption:

COL840

Colour Rendering Index:

≥85

Starting Time:

10 seconds

Warm Up Time (to 60% Light Output):

<60 seconds

Lumen Maintenance Factor:

≥80%

Efficiency:

69lm/W

Rated Life:

10,000 hours

Switching Cycles:

8,000

Warranty:

2 years

Diameter:

49mm

Height:

103mm

Product Weight:

0.048kg

Mercury (Hg) Content:

2.5mg

EAN13 Barcode:

5018986526365

Single Carton Length:

5cm

Single Carton Width:

5cm

Single Carton Height:

11.3cm

Single Carton Volume:

282.5cm³

Single Carton Weight:

0.065KG

Inner Carton GS1-128 Barcode:

02050189865263653750

Inner Carton Quantity:

50

Inner Carton Length:

26.5cm

Inner Carton Width:

52.5cm

Inner Carton Height:

13cm

Inner Carton Volume:

18086.25cm³

Inner Carton Weight:

3.602kg

Outer Carton GS1-128 Barcode:

020501898652636537200

Outer Carton Quantity:

200

Outer Carton Length:

54.5cm

Outer Carton Width:

55cm

Outer Carton Height:

28.5cm

Outer Carton Volume:

85428.75cm³
