Energy Saving Halogen G9 Capsule • 18W • 2700K • G9

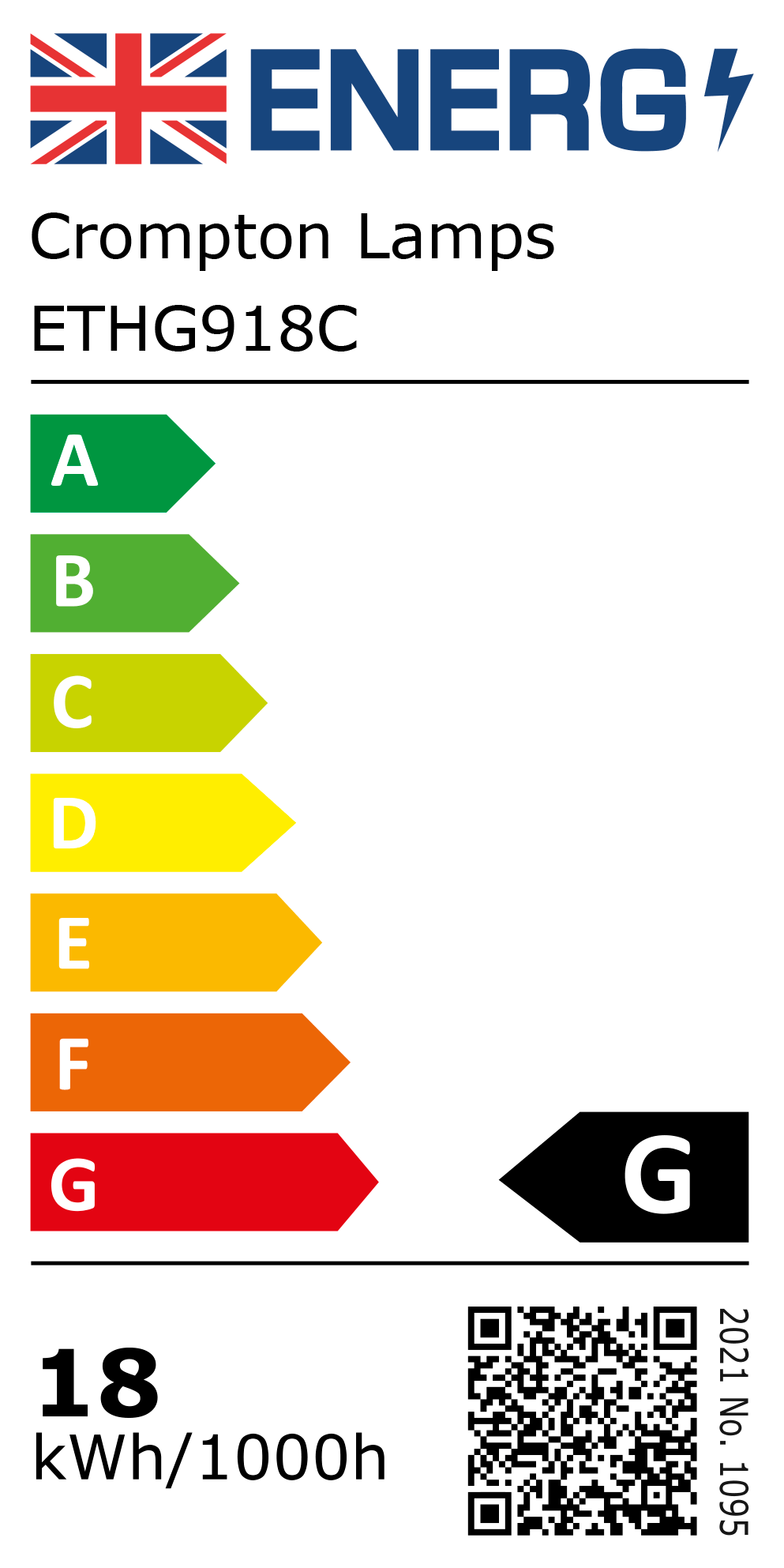

New 2021 Energy Rating: G

Energy Labelling Guide

Halogen G9 capsule retrofit energy efficient lamp.

For use in display and accent light fixtures and provides an extremely compact light source.

Constructed from UV stop glass, removing the need for additional UV protection.

Note:The switch-on surge of a mains voltage halogen lamp is higher than that of an incandescent lamp and hence it may be necessary to reduce the total wattage per circuit to avoid nuisance tripping of associated breakers. The use of dimmers will exacerbate this problem and, in extreme circumstances, it may be necessary to reduce the installed wattage by 50% of the breaker's rate capacity. If in any doubt, contact a qualified electrician.

Stock Code: ETHG918C

Related Products

Halogen G9 capsule retrofit energy efficient lamp.

For use in display and accent light fixtures and provides an extremely compact light source.

Constructed from UV stop glass, removing the need for additional UV protection.

  • 2,000 hour life
  • 8,000 switching cycles
  • G9 cap
  • 2700K warm white colour temperature
  • Colour rendering index ≥100
  • Suitable for dimming
  • Recommended for indoor use only
  • Instant full light
Note:The switch-on surge of a mains voltage halogen lamp is higher than that of an incandescent lamp and hence it may be necessary to reduce the total wattage per circuit to avoid nuisance tripping of associated breakers. The use of dimmers will exacerbate this problem and, in extreme circumstances, it may be necessary to reduce the installed wattage by 50% of the breaker's rate capacity. If in any doubt, contact a qualified electrician.

Running Cost
£6.61

Equivalent Running Cost
£8.81

Cost Saving
£2.20

Energy Saving
25%

Based on annual usage 7hrs/day @ £0.1437kWhr

Part Code:

ETHG918C

Product Name:

ESH 240V G9 Capsule 18W Dimmable 2700K G9

Notes:

The switch-on surge of a mains voltage halogen lamp is higher than that of an incandescent lamp and hence it may be necessary to reduce the total wattage per circuit to avoid nuisance tripping of associated breakers. The use of dimmers will exacerbate this problem and, in extreme circumstances, it may be necessary to reduce the installed wattage by 50% of the breaker's rate capacity. If in any doubt, contact a qualified electrician.

Nominal Voltage:

240V

Nominal Wattage:

18W

Nominal Luminous Flux:

210lm

Nominal Life:

2,000 hours

Dimmable:

Dimmable

Cap Type:

G9

Energy Saving:

Yes

Equivalent Wattage:

24W

Energy Efficiency Class:

New 2021 Energy Rating: G

Pre-2021: C

Rated Wattage (0.1W Precision):

18.0W

Voltage:

240V

Operating Frequency:

50/60Hz

Power Factor λ:

>1V

Operating Current:

80mA

Weighted Energy Consumption:

18W

Rated Total Luminous Flux:

210lm

Colour Temperature:

2700K

Colour Name:

Warm White

Colour Rendering Index:

≥100

Starting Time:

Instant full light

Warm Up Time (to 60% Light Output):

<0.5 seconds

Lumen Maintenance Factor:

≥80%

Efficiency:

12lm/W

Rated Life:

2,000 hours

Switching Cycles:

8,000

Diameter:

14mm

Height:

40mm

Product Weight:

0.003kg

Mercury (Hg) Content:

0.0mg

EAN13 Barcode:

5055579302203

Single Carton Length:

2.2cm

Single Carton Width:

2.2cm

Single Carton Height:

6.8cm

Single Carton Volume:

32.912cm³

Single Carton Weight:

0.006KG

Inner Carton GS1-128 Barcode:

020505557930220337100

Inner Carton Quantity:

100

Inner Carton Length:

14.5cm

Inner Carton Width:

24.5cm

Inner Carton Height:

12.5cm

Inner Carton Volume:

4440.625cm³

Inner Carton Weight:

0.689kg

Outer Carton GS1-128 Barcode:

0205055579302203371000

Outer Carton Quantity:

1000

Outer Carton Length:

26cm

Outer Carton Width:

67cm

Outer Carton Height:

32cm

Outer Carton Volume:

55744cm³

Name:
File Type:
Date Modified:

Jul 24 2018
